Description
Key Features

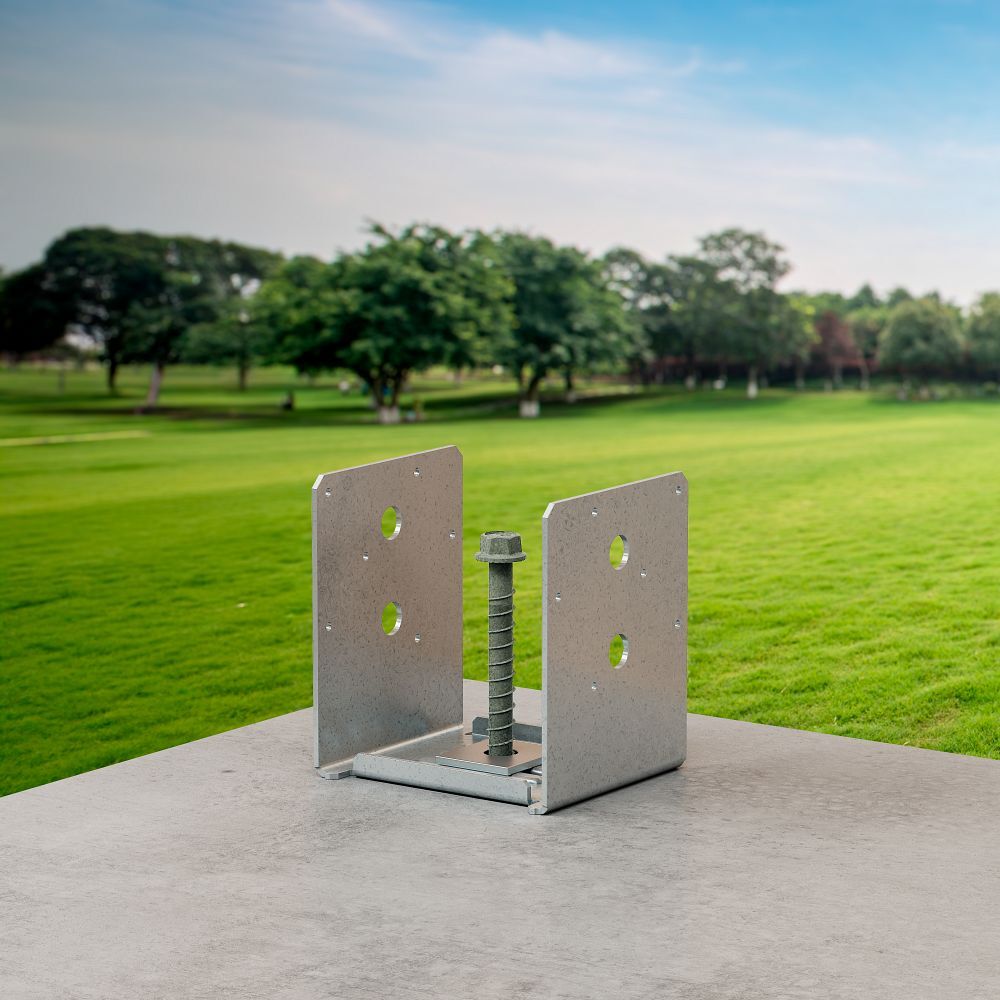

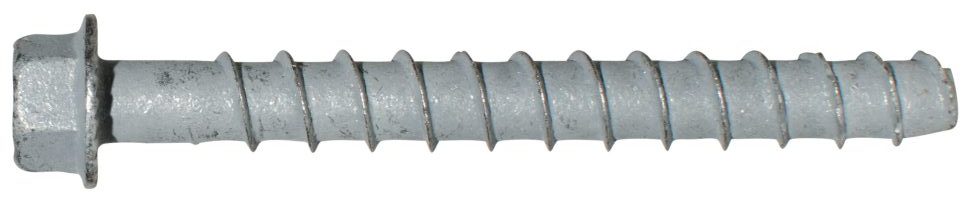

- Head-stamped for easy identification
- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Material
- Carbon steel
Finish
- Mechanically galvanized
Installation
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus minimum hole depth overdrill (see table below) to allow the thread tapping dust to settle, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling and tapping.

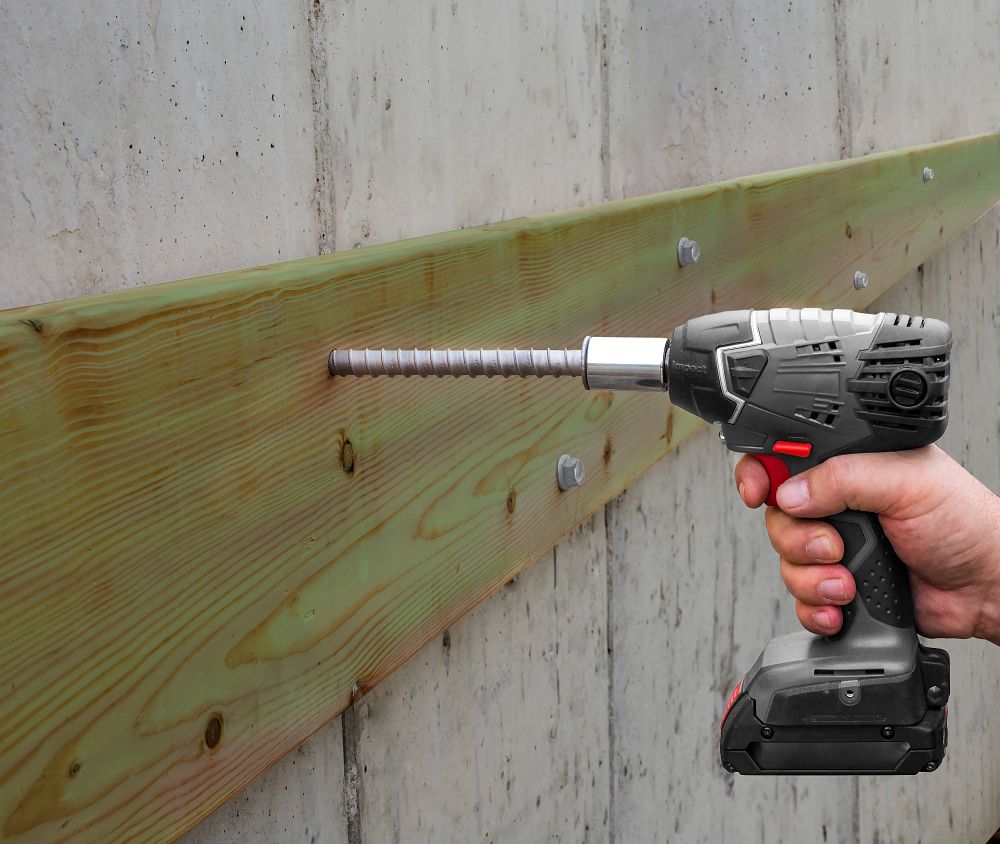

- Insert the anchor through the fixture and into the hole.

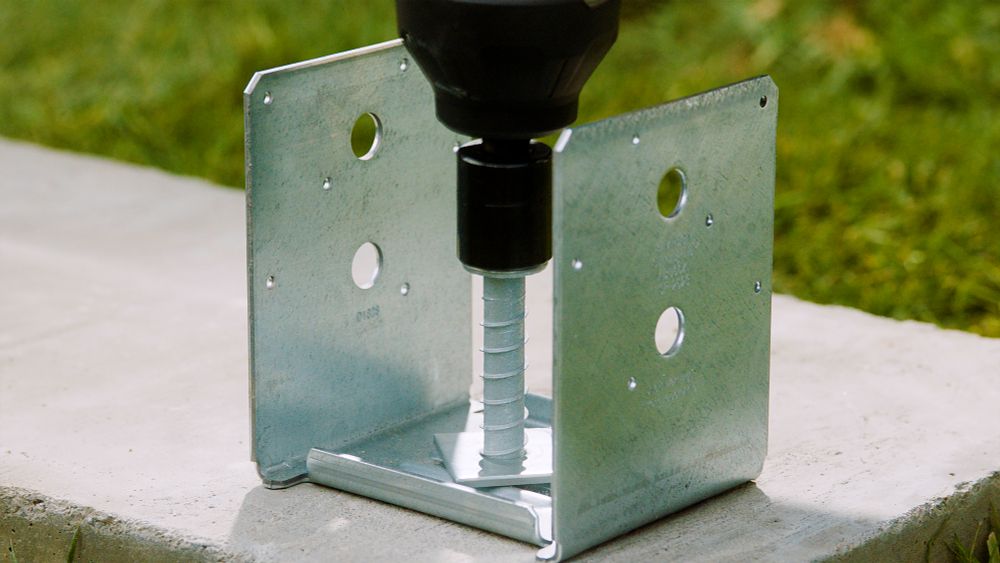

- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
| Titen HD Diameter (in.) | Wrench Size (in.) | Recommended Fixture Hole Size (in.) | Min. Hole Depth Overdrill (in.) |
|---|---|---|---|
| Suggested fixture hole sizes are for structural steel thicker than 12 gauge only. Larger holes are not required for wood or thinner cold-formed steel members. | |||
| 3/8 | 9/16 | 1/2 to 9/16 | 1/4 |
| 1/2 | 3/4 | 5/8 to 11/16 | 1/2 |
| 5/8 | 15/16 | 3/4 to 13/16 | 1/2 |
| 3/4 | 1 1/8 | 7/8 to 15/16 | 1/2 |
