Simpson SDWH Timber-Hex Screw

Starting from $9.85

Product Description:

Product Details

Strong-Drive SDWH Timber-Hex Screws are designed for structural and general-purpose fastening applications where a hex-head drive is preferred. These screws are ideal for the contractor and do-it-yourselfer alike. The SDWH Timber-Hex is code listed in IAPMO UES ER-192 and meets 2018, 2021, and 2024 IRC and IBC code requirements for most common wood framing applications.

Select Length

Select Quantity

Clear

Product total

Options total

Grand total

Description
Additional information

Description

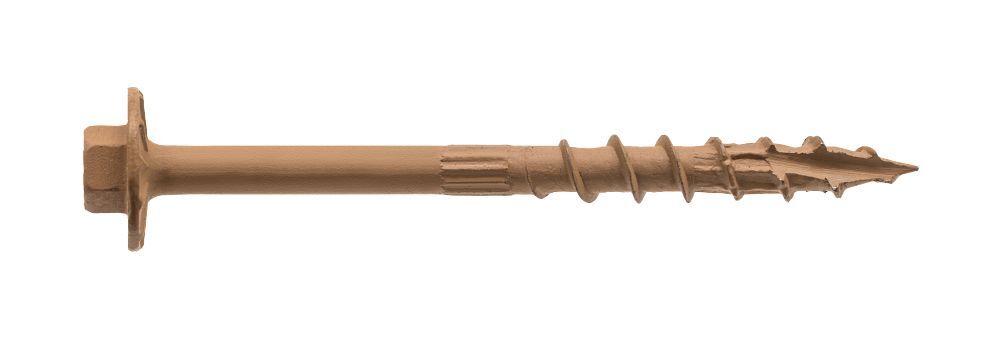

Key Features

Bold thread design provides superior holding power
SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
Underhead nibs allow for head to countersink into wood with reduced splintering
Large washer head provides maximum bearing area (0.650″ washer head diameter)
Size identification on all SDWH screw heads
5/16″ hex drive (replacement driver bit — BITHEXR516-R1)

Double-barrier coating provides corrosion resistance equivalent to hot-dip galvanization, making it suitable for certain exterior and preservative-treated wood applications, as described in the evaluation report.

Applications

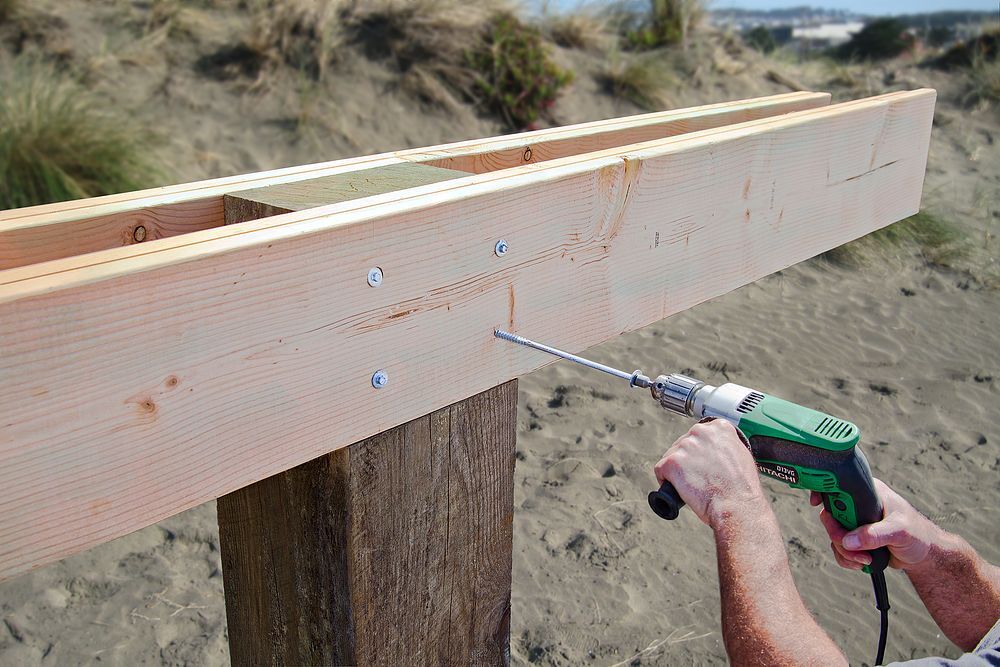

Structural wood-to-wood and engineered wood connections including ledgers

Additional information

Weight	N/A
Dimensions	1 × 1 × 1 in
Select Length	3", 4", 6", 8", 10"
Select Quantity	12 Pc, 50 Pc, 250 Pc, 500 Pc, 600 Pc, 800 Pc, 1000 Pc

Simpson SDWH Timber-Hex Screw

Description

Key Features

Applications

Additional information
