Product Description:

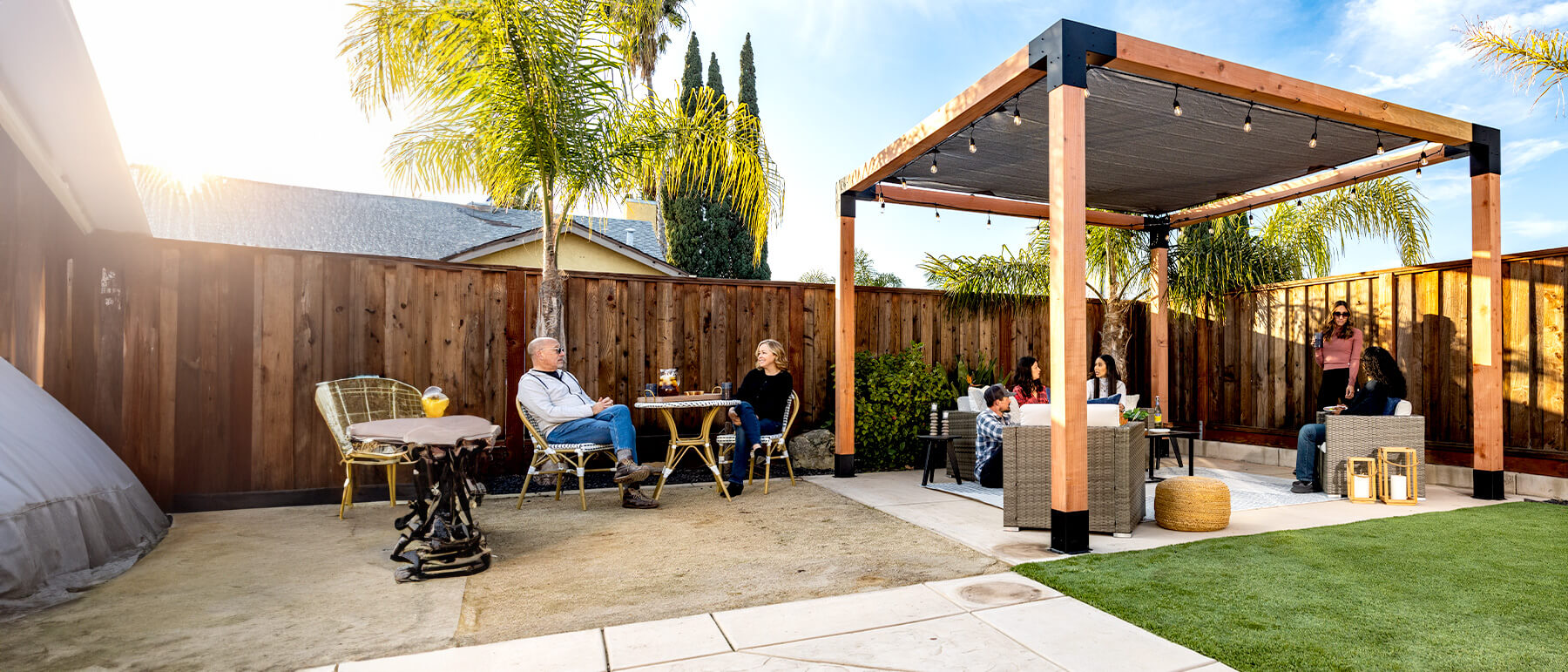

The Outdoor Accents® Sage System™ lets homeowners and DIYers easily build strong, beautiful outdoor pergolas with ZMAX®-galvanized steel connectors that have a stylish black powder-coat finish for superior corrosion resistance and long-lasting structural stability.

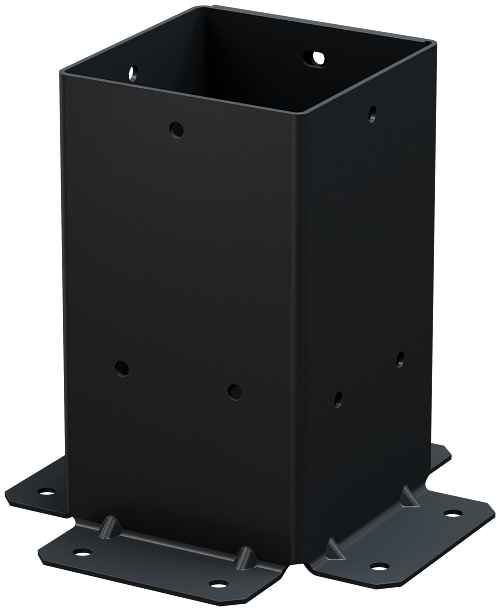

The tested Sage-B post base is designed to secure posts to concrete. Its outside flanges offer the flexibility of attaching to the concrete before or after the pergola is finished. These bases easily install on posts with our premium Outdoor Accents color-matched connector screws (included) and secure to the concrete with our black Titen Turbo™ concrete and masonry screw anchors (included).

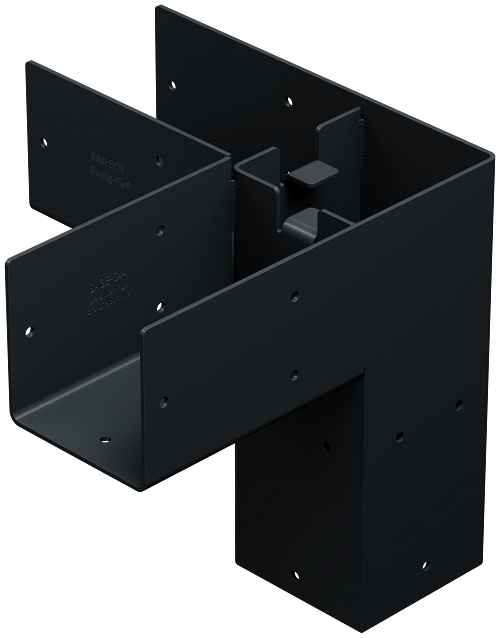

The Sage-C corner connector features three-way 90° angles for making a strong connection of two beams to the post with consistent, straight corners. The innovative, open-top design of the connector simplifies installation, adapts to various build methods (top down or ground up), handles lumber variances, and supports a range of stylish shade applications. This connector installs quickly and easily with our Outdoor Accents color-matched connector screws (included).

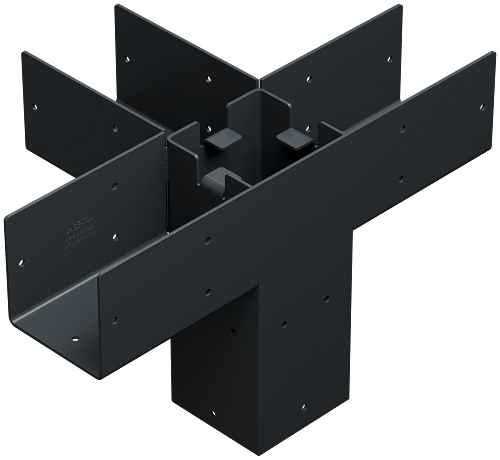

The Sage-T middle-T connector features four-way 90° angles for making a strong connection of three beams to the post with consistent, straight corners at mid-sections. The innovative, open-top design of the connector simplifies installation, handles lumber size variances, and supports a range of stylish shade applications. This connector installs quickly and easily with our premium Outdoor Accents color-matched connector screws (included).

Description

Key Features

Material

Finish

Actual Sizes

Post Base – 4 x 4 – 6 1/4″ x 6 3/8″ x 6 1/2″    /    6 x 6 – 8 5/16″ x 8 7/16″ x 8 1/2″

Corner Bracket – 4 x 4 – 9 13/16″ x 9 13/16″ x 9 5/8″    /    6 x 6 – 13 13/16″ x 13 13/16″ x 13 5/8″

Middle Bracket – 4 x 4 – 9 13/16″ x 15 13/16″ x 9 5/8″    /    6 x 6 – 13 13/16″ x 21 13/16″ x 13 5/8″

Additional information

Weight N/A
Dimensions N/A
Select Part

Post Base, Corner Bracket, Middle Bracket

Select Post Size

4 x 4, 6 x 6
