Typically there are 10 cable rows for 36″ Rail Height, 12 rows for 42″ Rail Height based on 3 1/8″ On Center spacing

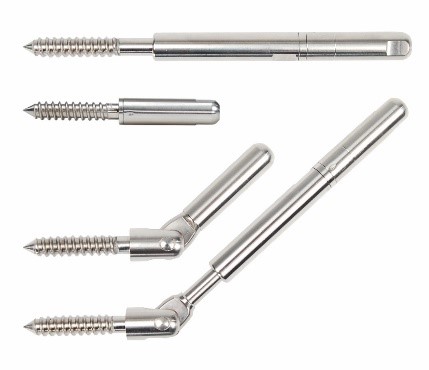

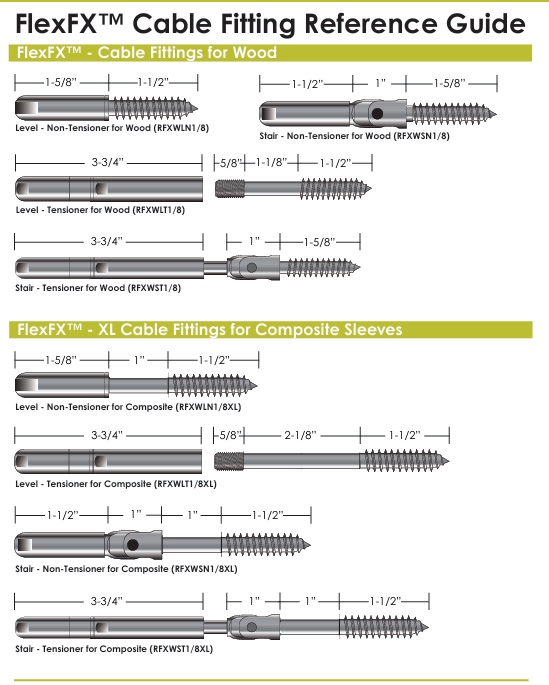

Composite Fittings have longer lags to extend though the post sleeve into the wood post.
Cable Braces are needed for spans larger than 60″

Installation Steps
1. Drill Posts for either cable fitting (7/32″) or cable pass-through (5/16″)
2. Install Tensioning and Non-Tensioning Fitting Lags into end posts
3. Measure and cut Cable runs to length
4. Insert cable into Non-Tension fitting
5. Feed cable through intermediate posts and insert into Tension Fitting
6. Tension cable runs staring in the middle and working up & down

HELPFUL HINTS:
Use Cable Brace as guide for drilling holes.
Purchase a PL-Key in case you need to release the cable from the fitting.

Installation Instructions
